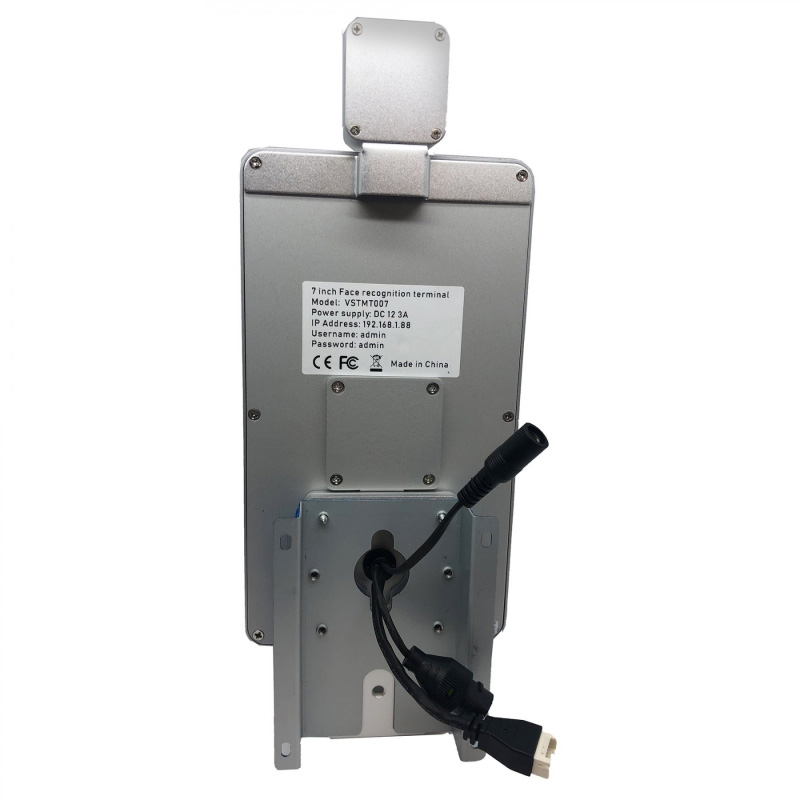

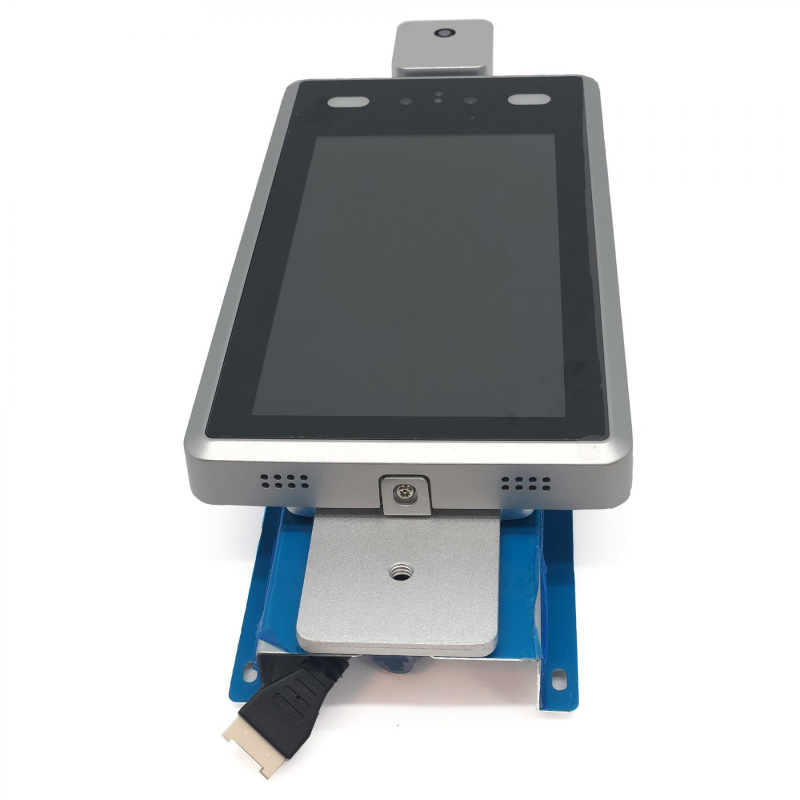

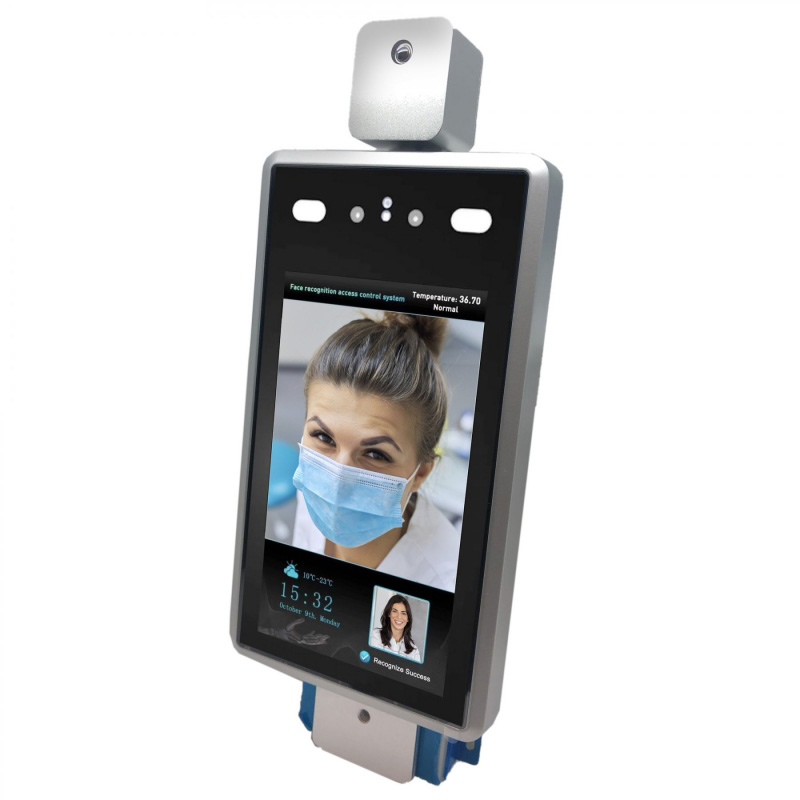

Body Temperature Scanner Camera Wall Mounted

Designed for businesses and public venues, this wall mounted scanner combines infrared temperature detection with facial recognition to provide fast, contact free screening. Employees and visitors simply stand in front of the 7 inch display: within seconds the high precision IR sensor measures forehead temperature and displays the result while the camera verifies identity. The device logs each scan and can connect to a firm’s network for real time data integration or operate in stand alone mode. If a mask is required, the camera prompts users to wear one and can be linked to a magnetic door lock to deny entry until compliance. It also supports SDK and HTTP protocols (coming soon) for integration with third party systems. Optional pole and tripod mounts expand installation options, and email alerts are available.

Features

• Facial recognition temperature screening checks employees or customers on arrival and records each scan
• High precision IR detector measures body temperature quickly and accurately while people wear masks
• Network integration via Ethernet and supports SDK/HTTP protocols (coming soon)
• Fast throughput scans one person every 1–2 seconds, suitable for busy entrances
• Stand alone or networked operation
• Mask detection prompts users to put on a mask and can control a magnetic lock to deny entry without one
• Builds an employee database and records scans for contact tracing
• Email alerts available in firmware 17.18.1.28

Specifications

• Power consumption: 20 W (max)
• Power input: DC 12 V / 3 A
• Interfaces: USB port, alarm relay output, Weigand input/output (26/34), RJ45 Ethernet
• Temperature measurement range: 86 °F–113 °F
• Response time: 0.5 seconds
• Optimal distance: ~1.5 ft (0.4 m)
• Accuracy: ±0.3 °F
• Camera: 2 MP (1920 × 1080) color camera with low light sensitivity and wide dynamic range
• Face recognition: supports 22,400 faces and 100,000 records at ranges of 2–10 ft; height range 1.2–2.2 m; vertical view angle ±30°
• Shipping dimensions: approximately 17 × 6 × 5 inches; shipping weight 4.15 lbs

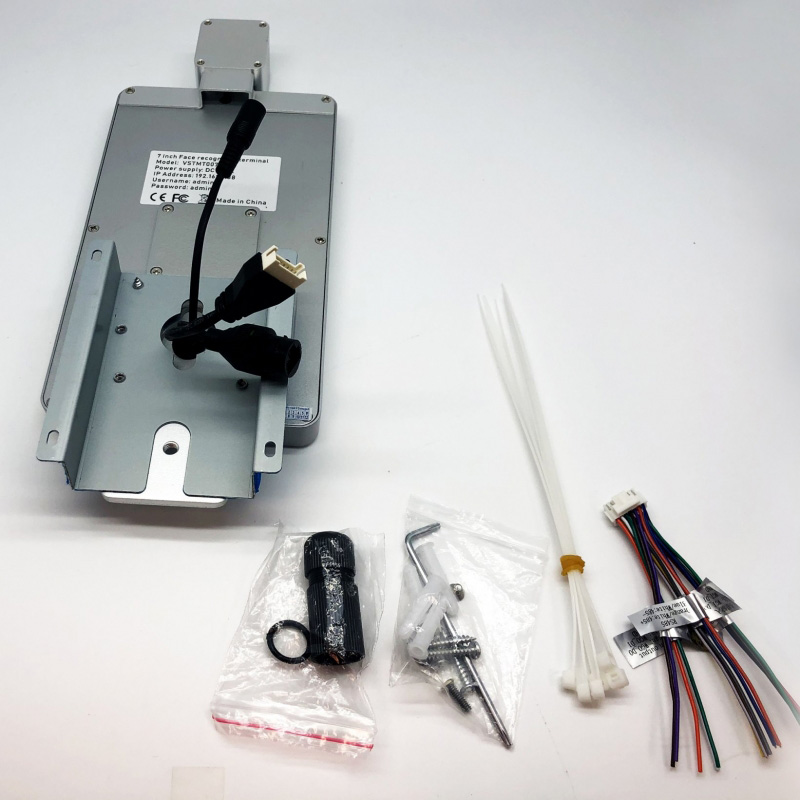

Included

• Body temperature scanner camera (wall mounted)
• Pole mount
• Power adaptor

Manuals & Downloads

• TMT2 User Manual (PDF)
• sVMS2000 Face Management Software Manual (PDF)
