30 Person Thermal Image Body Temperature Camera

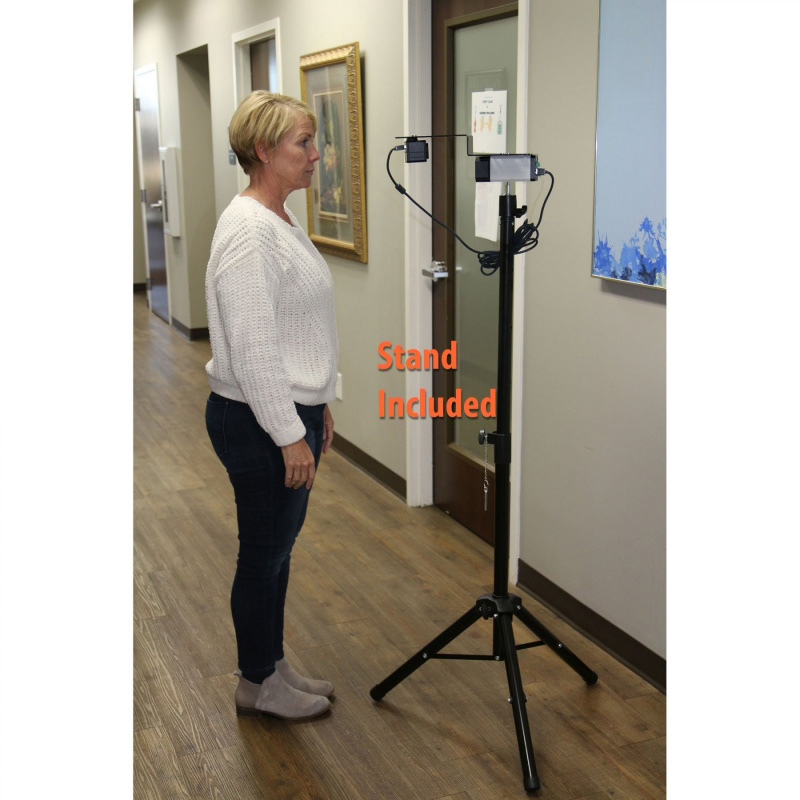

The camera connects via Ethernet or HDMI for real time monitoring and remote management. AI face recognition matches people against a database of up to 22,400 faces and stores 100,000 measurement records. The included blackbody module keeps temperature measurement accuracy within ±0.1 °C when used, and ±0.3 °C without it. Setup is straightforward with the included tripod, mounting brackets and software, making it suitable for entrances, lobbies and other high traffic areas.

Features

• Screens up to 30 people at once for elevated body temperature
• High accuracy thermal imaging with ±0.3 °C precision (±0.1 °C using the blackbody calibration unit)
• Automatic measurement without stopping, even for people wearing face masks
• Abnormal temperature alerts with audio or visual warnings
• Captures photos and video for record keeping and contact tracing
• Network integration via Ethernet or HDMI for real time monitoring and remote access

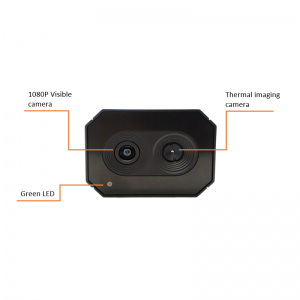

• 1080 p high definition camera with 25 Hz frame rate and 120° field of view
• AI face recognition stores up to 22,400 faces and 100,000 measurement records with detection range of 2–10 ft
• Multi language support (English, Chinese, Japanese)

Specification

• Temperature measurement range: 86 °F–113 °F for human screening (–15 °C to +150 °C for objects)
• Accuracy: ±0.3 °C (±0.1 °C with blackbody)
• Response time: 0.5 s

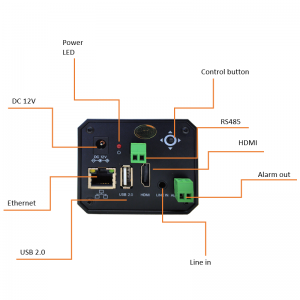

• Interfaces: Ethernet (RJ45), HDMI, alarm relay output and USB
• Camera resolution: 1920 × 1080 with 25 Hz frame rate and 120° field of view
• Thermal module: 160 × 120 resolution at 25 Hz, NETD 80 mK with adaptive AGC, DDE and 3D DNR
• Face recognition capacity: 22,400 faces and 100,000 records; detection range 2–10 ft; height range 1.2–2.2 m; vertical view angle ±30°
• Working temperature: +10 °C to +50 °C; storage temperature: –40 °C to +85 °C; IP54 protection
• Power: AC; shipping dimensions 32″ × 13″ × 7″; shipping weight 9 lb

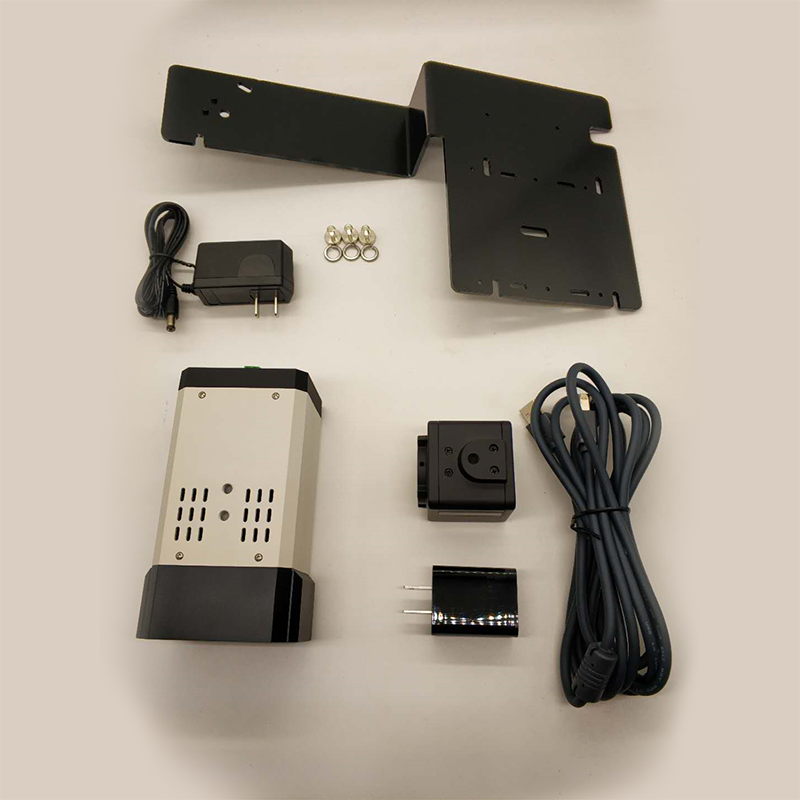

Included

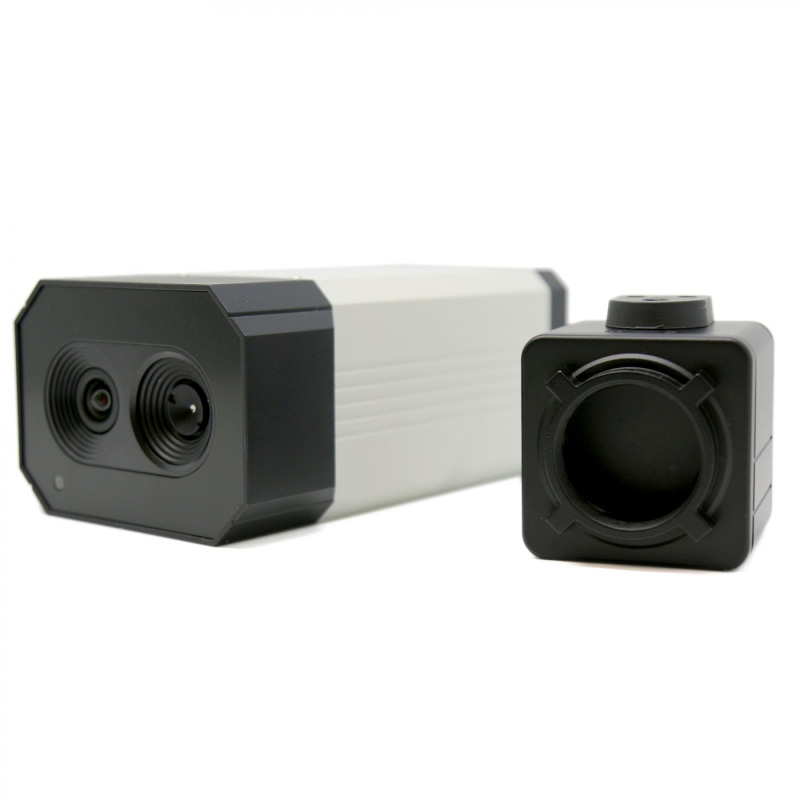

• Dual spectrum thermal imaging camera

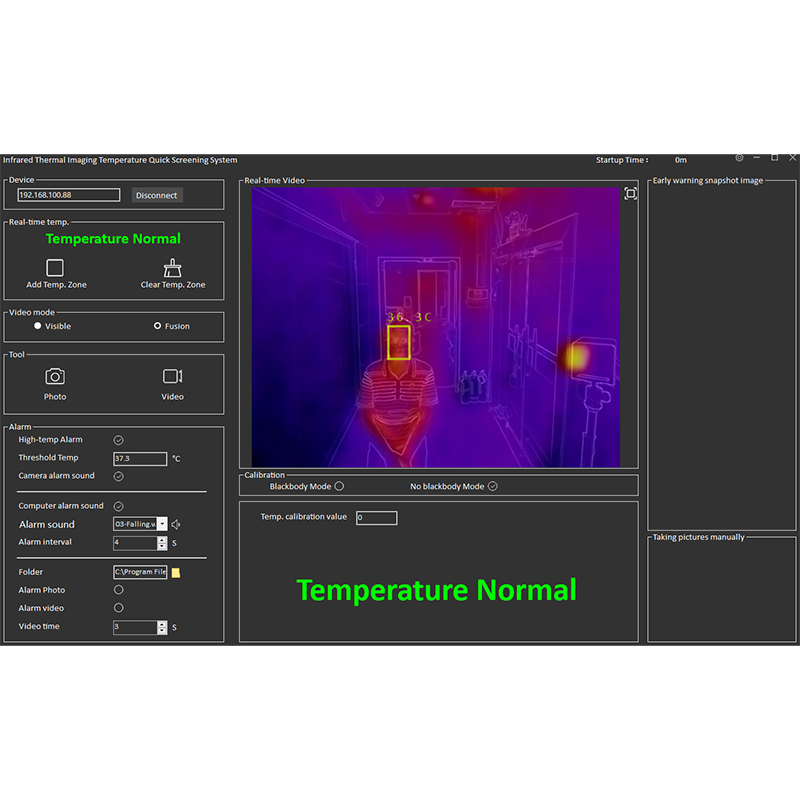

• Web interface and downloadable software
• AC adapter
• Wall mounting bracket
• Blackbody calibration unit with bracket and screws
• Blackbody power cable
• Tripod stand

Manuals & Downloads

• User Manual (PDF)
• Specification Sheet (PDF)
• TMT30BB Viewer Software (available from the manufacturer’s website)
